SKU: Hilti388

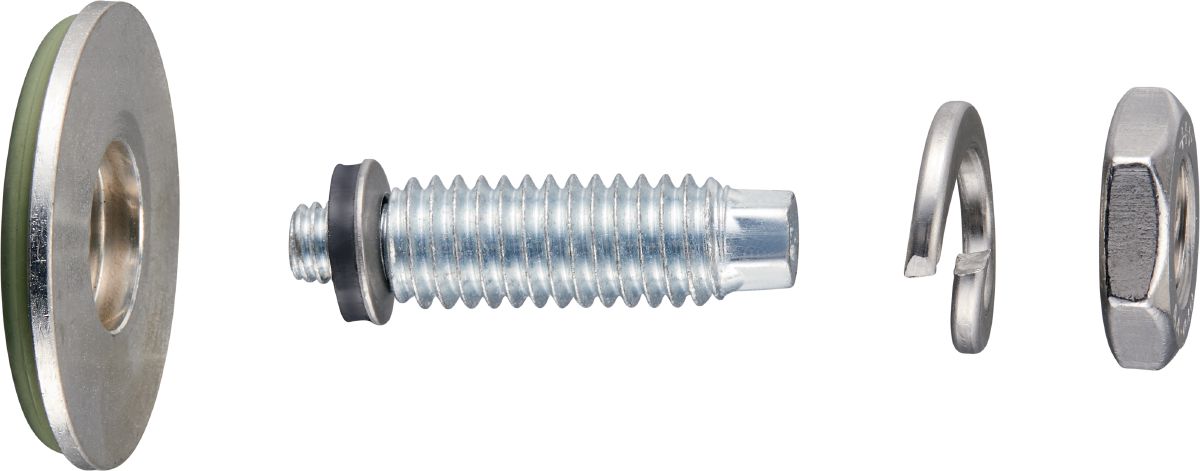

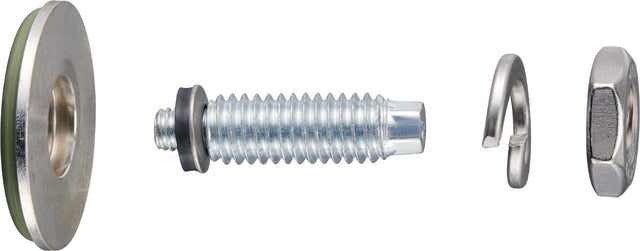

Electrical Connector S‑BT‑ER M10 HC 120 HL (Hilti)

0.0QR

Shipping calculated at checkout.

Care information

Keep your products in top condition: Furniture – dust regularly, avoid sunlight, and clean spills fast. Electronics – keep dry, use a microfiber cloth, and protect from power surges. Building materials – store dry, handle safely, and avoid chemicals. Kitchenware – wash gently, use mild detergents, and store properly

Delivery and Shipping

Enjoy fast delivery on all orders, with an express option delivering within 3 hours! Shop with confidence knowing we offer a 3-day hassle-free return policy for eligible products. Your satisfaction is our priority—quality products

Discover Quality, Delivered Fast – Everything You Need, All in One Place!

Smart Shopping Big Savings

Discover top-quality products at unbeatable prices with fast delivery and easy returns for a seamless shopping experience

Description

Parameter	Value / Specification
Product Name	Electrical Connector S‑BT‑ER M10 HC 120 HL
Part Number	#2346079
Thread / Size	M10
Material	Stainless steel, duplex (1.4462)
Corrosion Protection	Equivalent to A4 / 316 stainless steel
Base Material	Steel
Minimum Base Thickness (Steel)	6 mm
Point / Tip Type	Blunt tip
Tightening Torque	16 Nm for this HL model
Max Connected Cable Cross‑Section	120 mm² (AWG 4/0)
Current Capacity (Permanent)	Ith = 269 A for this HC‑120 type B connector
Short-Circuit / Fault Current Capacity	Icw = 14.40 kA (IEC) for single point connection. Also: UL short‑circuit rating ~10.10 kA for 9 s (per spec)
Lightning / Surge Current (Impulse)	Iimp = 100 kA (≤ 5 ms) for class H, type B connection
Standoff / Nominal Height (hNHS)	~26.1 to 26.6 mm (for HC‑120 version)
Cable Lug Hole / Thickness (tcl)	Inner hole diameter d₂ = 10.5 mm, recommended lug thickness tcl = 12 mm for this connector.
Installation Tool	Battery-driven S‑BT tool (e.g. SBT 6‑22)
Environmental Conditions	Highly corrosive environments (e.g. marine, offshore, petrochemical)
Standards & Approvals	- IEC 62561-1 (for lightning) - UL listed (fault current) - Offshore / onshore type approvals.
Special Notes	For type B / HC‑120, the conductivity disc must contact uncoated steel. If base is coated, remove coating using Hilti’s recommended drill bit.
